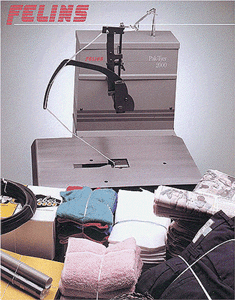

	The free standing Rotary Pak-Tyer is our latest addition to the Pak-Tyer line of bundling solutions.
	Our 2000 Series Pak-Tyers are available in many sizes. Our Specialty Models provide solutions for those more unique applications. For high volume applications take a look at our Automated Systems. All Pak-Tyer models can be set up to use the type of tying Materials best suited for your particular application.

paksizs

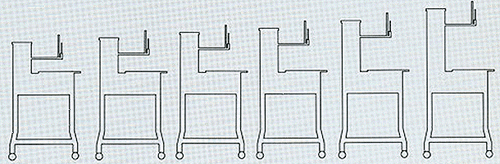

STANDARD MODEL SIZES


Model: Maximum Package Height: Weight: Table Size:	2000-6 6" (15 cm) 145 lbs. (65 kg) 16" x 22" (40 cm x 55 cm)	2000-8 8" (20 cm) 170 lbs. (77 kg) 16" x 26" (40 cm x 65 cm)	2000-10 10" (25 cm) 210 lbs. (95 kg) 24" x 30" (60 cm x 75 cm)	2000-12 12" (30 cm) 230 lbs. (104 kg) 24" x 30" (60 cm x 75 cm)	2000-16 16" (40 cm) 260 lbs. (117 kg) 24" x 38" (60 cm x 95 cm)	2000-22 22" (60 cm) 300 lbs. (135 kg) 24" x 38" (60 cm x 95 cm)

Power Requirements:

Package Size:

Speed:

115 VAC, 60 Hz, 4 Amp, Single Phase or 220 VAC, 50 Hz, 2 Amp, Single Phase

Minimum 1" (2.5 cm) diameter, no width or length restrictions, maximum height as per above

40 - 50 cycles per minute

Key Benefits
